Double Head Sawing Machines
Front blade double head sawing with Ø 550 mm blades.
Fenstek double head sawing machines cut aluminium profiles to length and mitre with Ø 550 mm tungsten carbide front blades. Numerical control drives head positioning, and a hydraulic blade feed keeps the cut clean and consistent across the run. Both models are available in 4200 mm and 5000 mm length versions.
Highlights
- Ø 550 mm tungsten carbide front blades
- Programmable movement of the mobile head

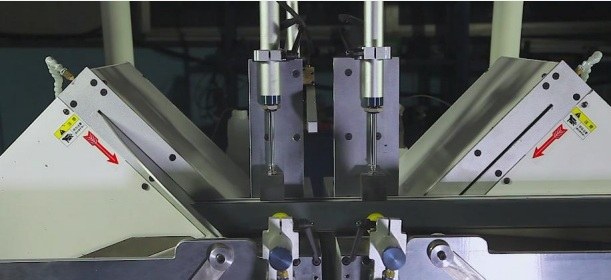

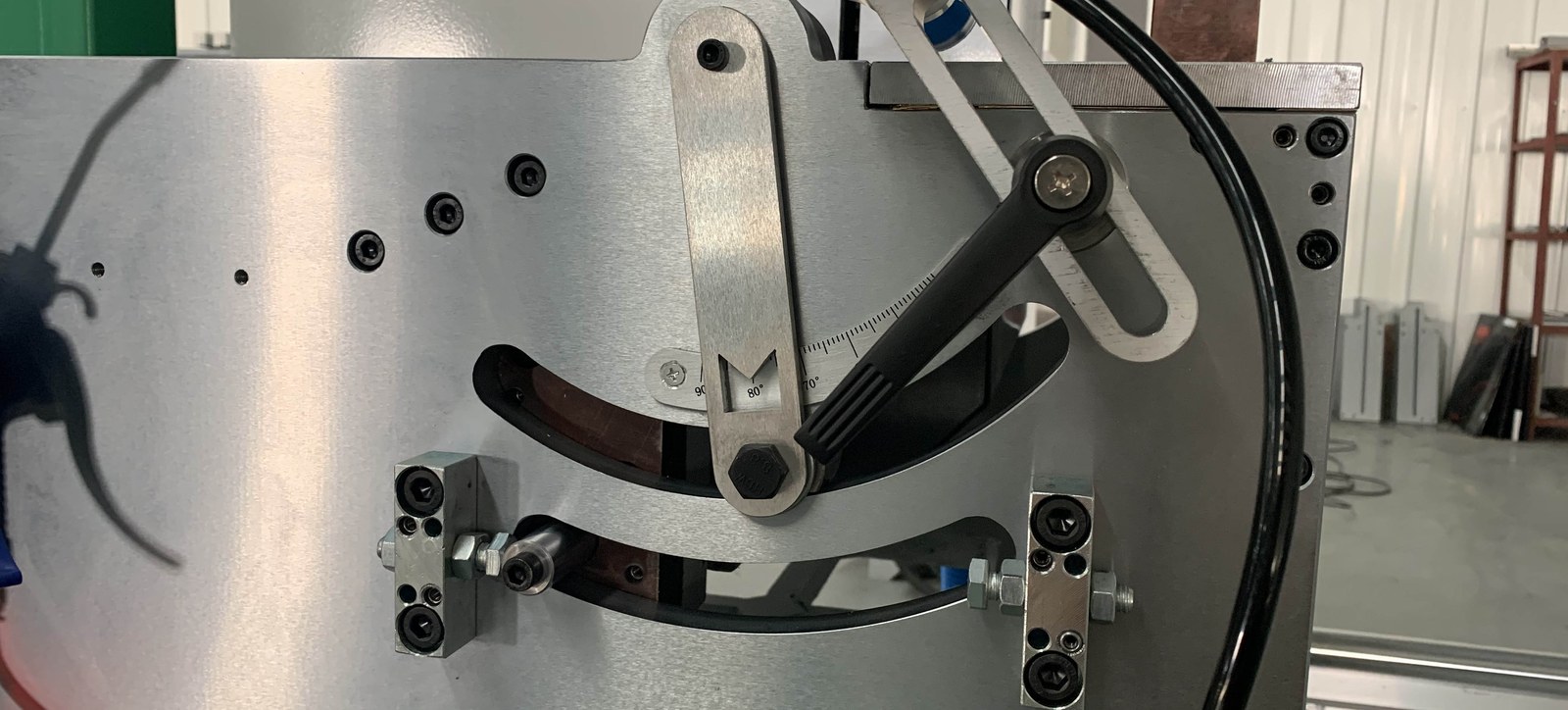

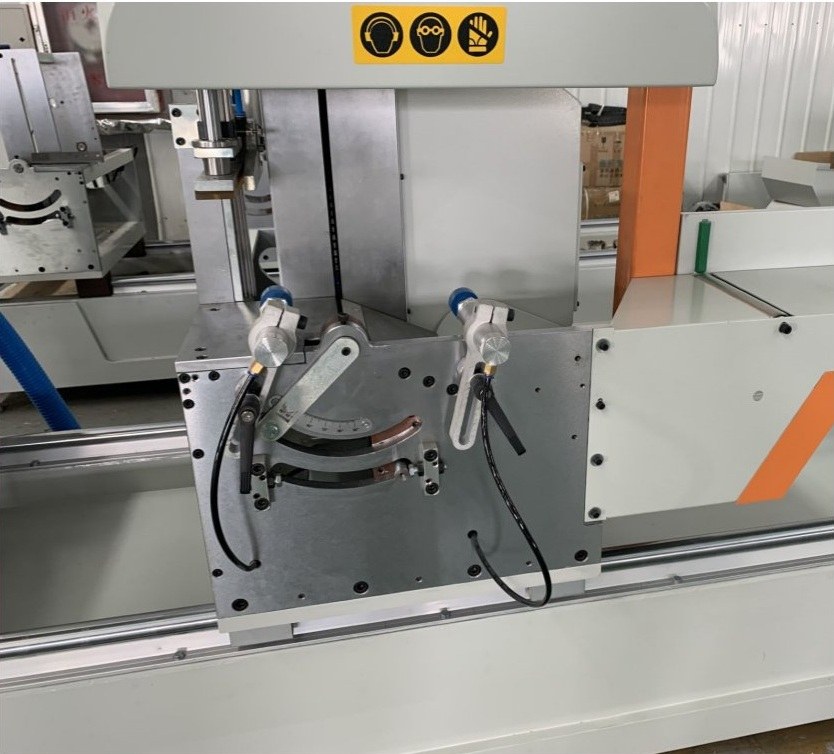

- Pneumatic head tilting
- Hydraulic blade feed for a clean cut
- 4200 mm and 5000 mm length versions

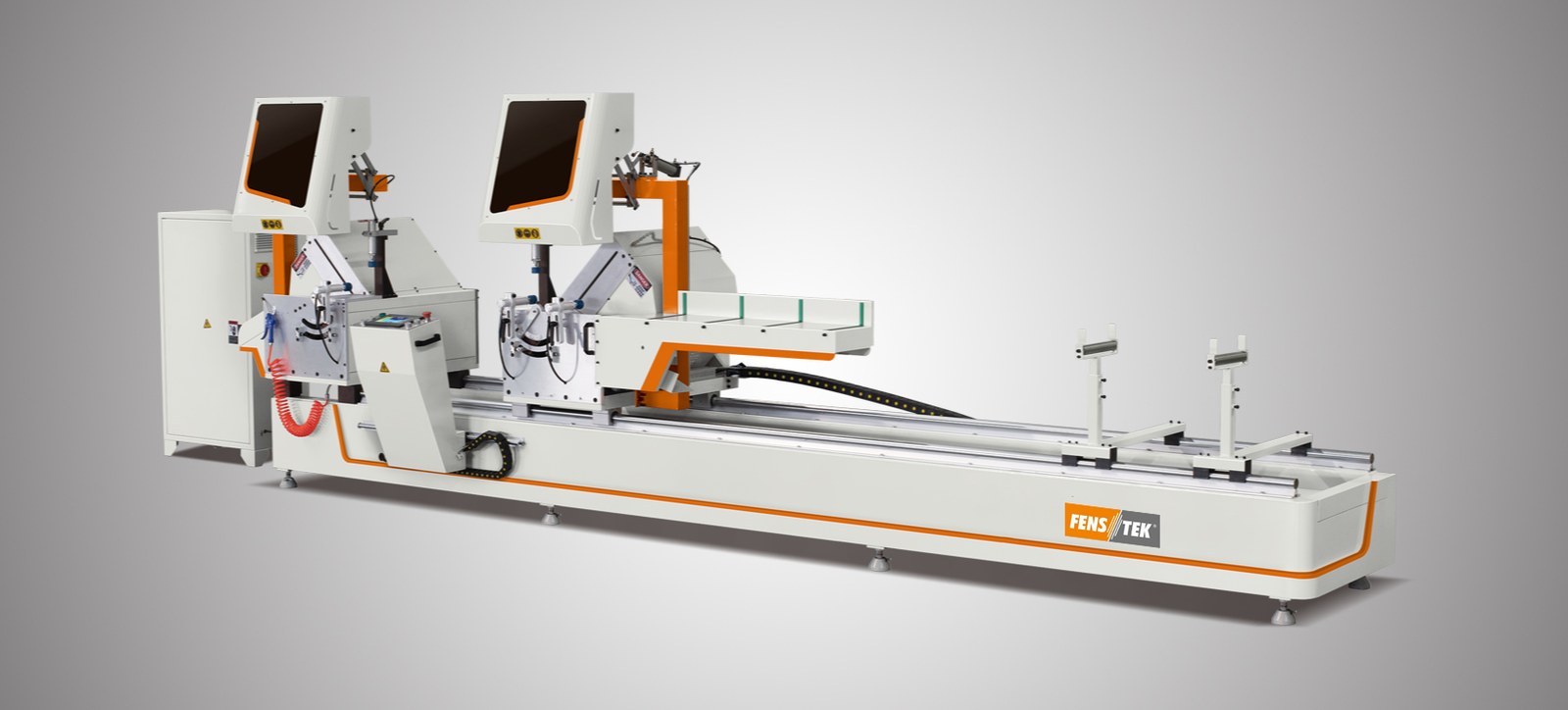

ADS 550
Front blade double head sawing machine with Ø 550 mm blades.
The ADS 550 adopts an advanced numerical control system to drive machine movement and positioning automatically, with high precision and simple operation. Blade movement is controlled by a hydraulic feed system to ensure a clean, precise cut. Available in 4200 mm and 5000 mm length versions.
- Ø 550 mm tungsten carbide front blade

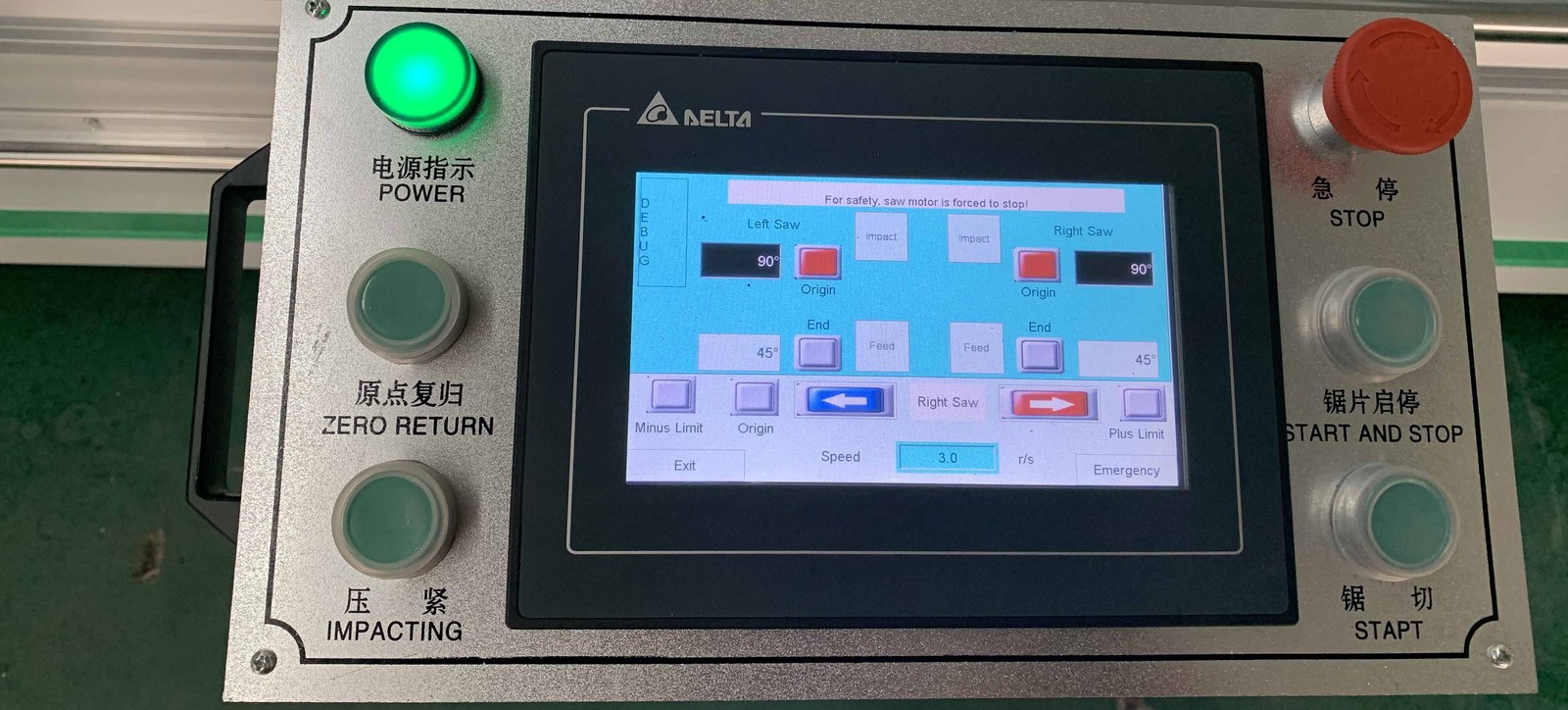

- Automatic numerically controlled positioning
- Hydraulic blade feed system

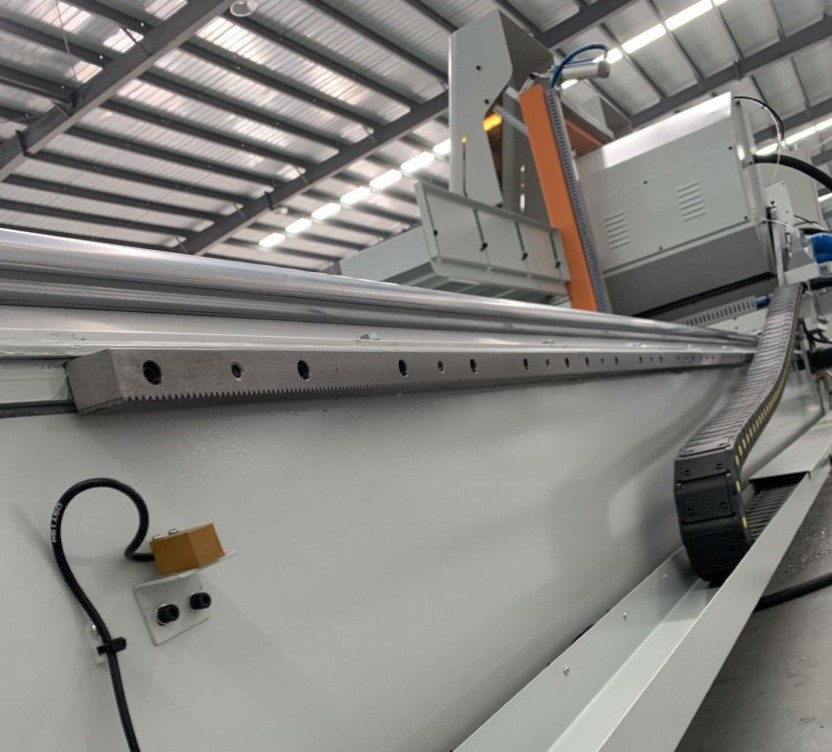

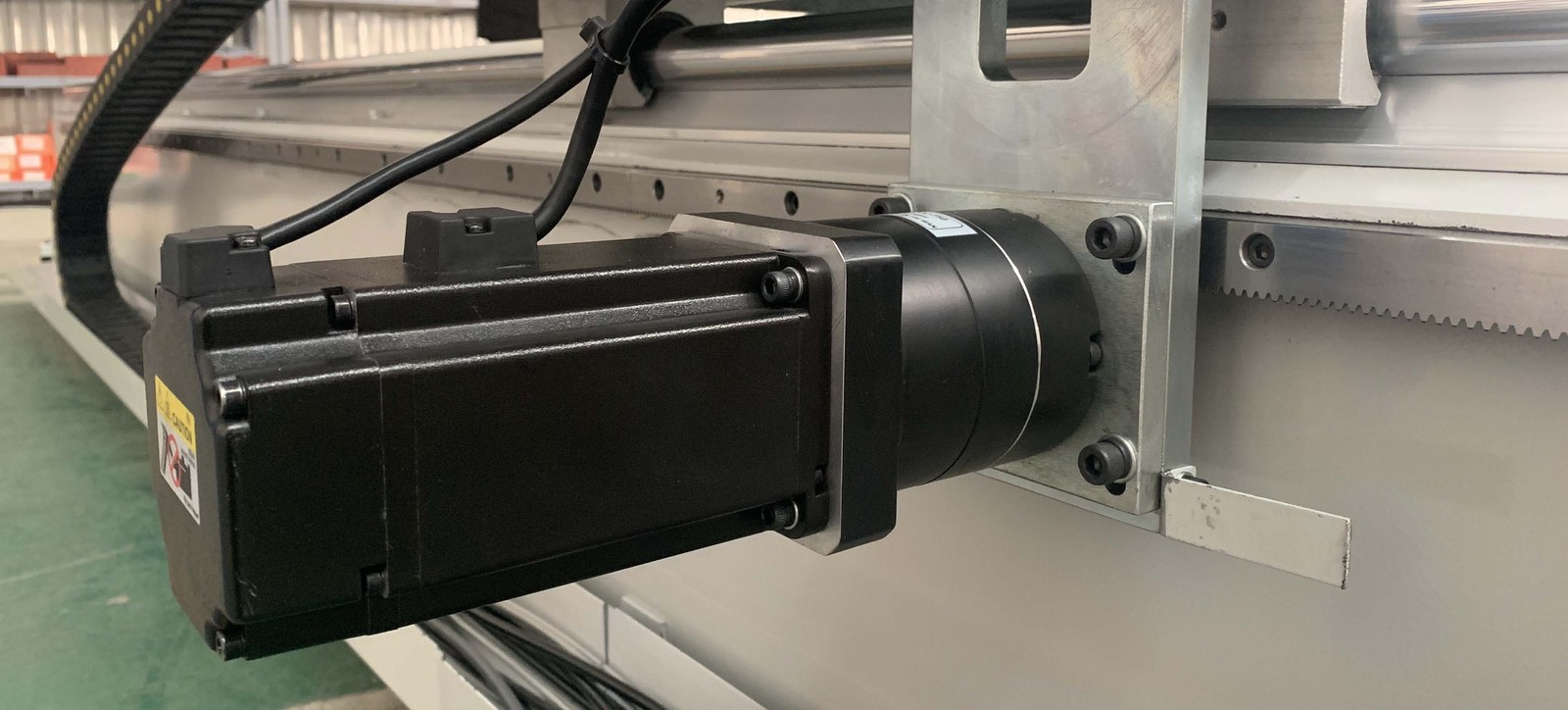

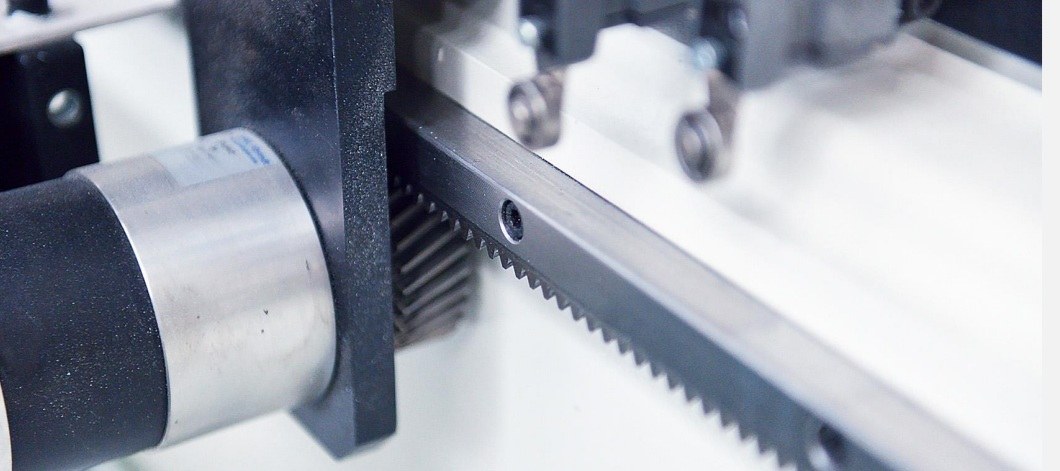

- Programmable movement of the mobile head
- Pneumatic head tilting
- 4200 mm and 5000 mm length versions available
Cutting capacity
Click to enlarge

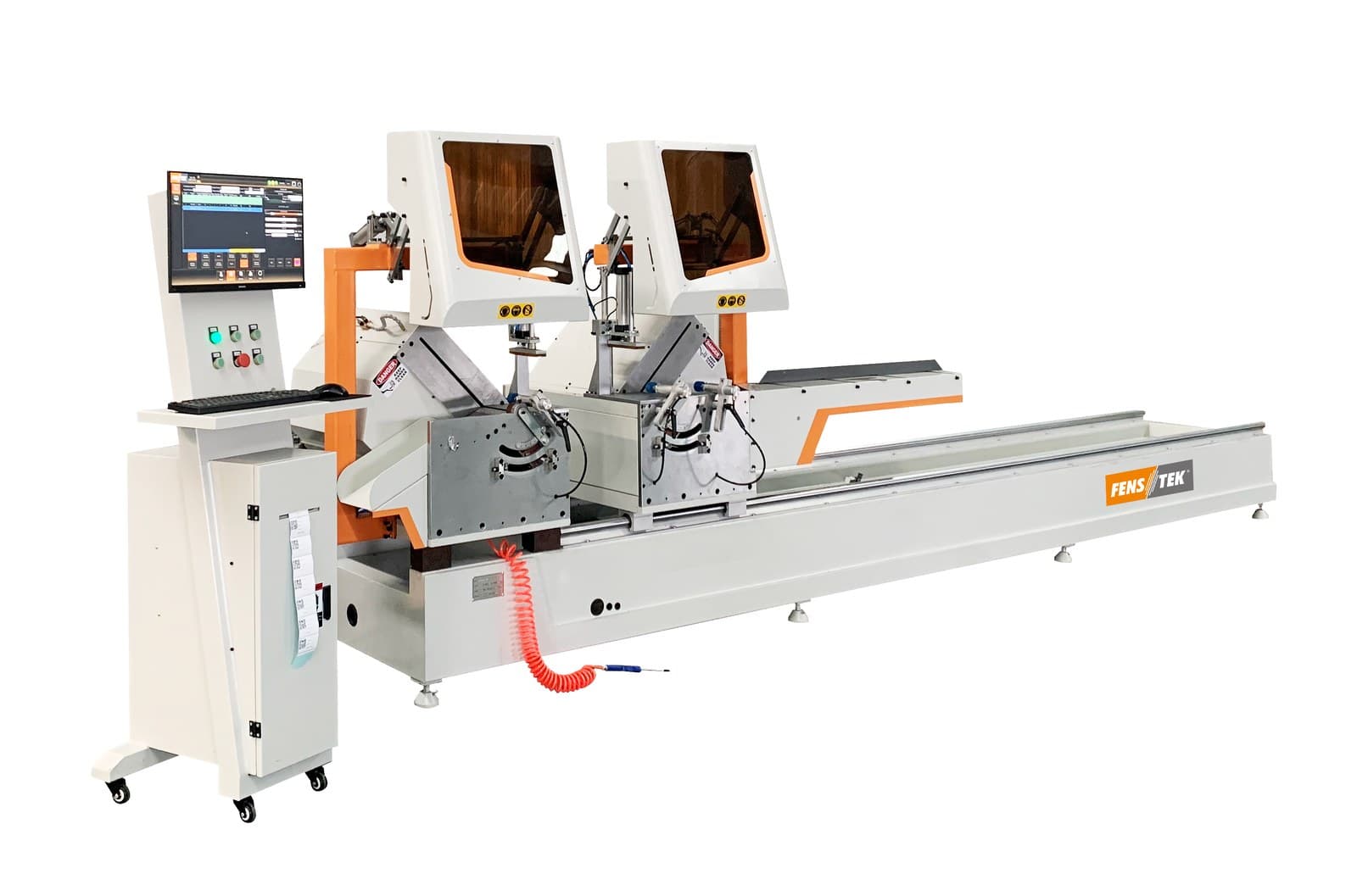

IADS 550
CNC double head sawing machine with industrial PC.

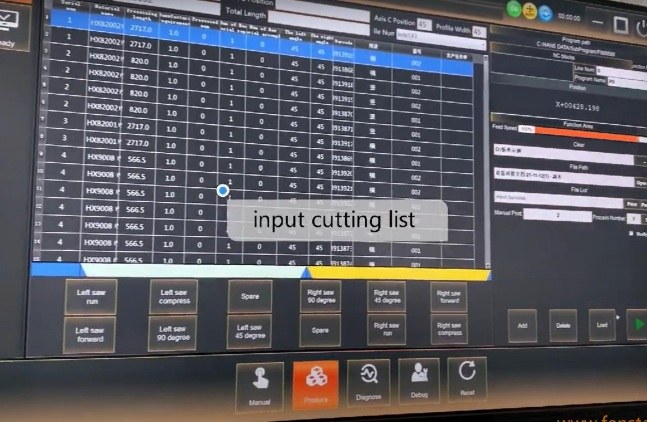

The IADS 550 is a CNC integrated double head sawing machine built around an industrial personal computer, which gives it flexible communication with design and production management software — cutting lists can be sent to the saw rather than keyed in at the machine. Cutting range is 170 × 170 mm at 90° and 150 × 150 mm at 45°.
- Ø 550 mm tungsten carbide front blade

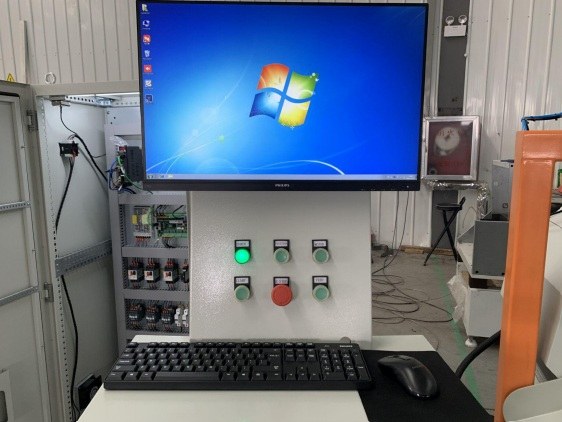

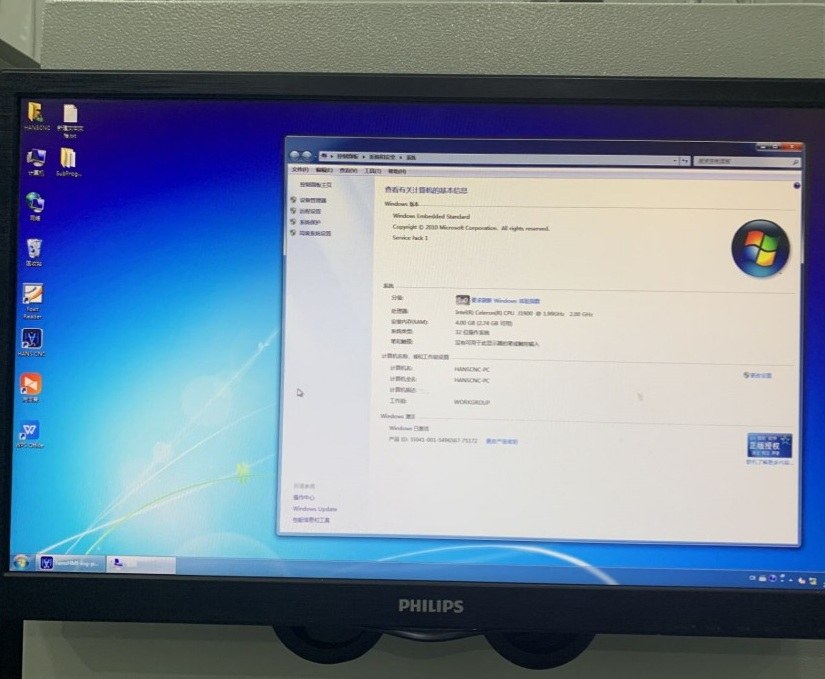

- Industrial PC with production software connectivity
- Cutting range 170 × 170 mm at 90°
- Cutting range 150 × 150 mm at 45°
- Programmable movement of the mobile head
- Pneumatic head tilting
- 4200 mm and 5000 mm length versions available
Cutting capacity
Click to enlarge
