CNC Machining Centre with Laser
Laser cutting and multi-axis machining in one machine.
The Fenstek laser machining centre puts a laser head and an electro-spindle on the same machine, so aluminium and steel profiles can be cut, milled, drilled and tapped without moving between stations. Two working zones let the operator load one side while the other runs, keeping the spindle cutting rather than waiting.
Highlights
- Integrated 1.5 kW laser generator
- Double working zones for continuous loading
- Aluminium and steel profile processing
- Milling, drilling, tapping and grooving
- Standard 4 metre working length
T200L
CNC machining centre with integrated laser head.

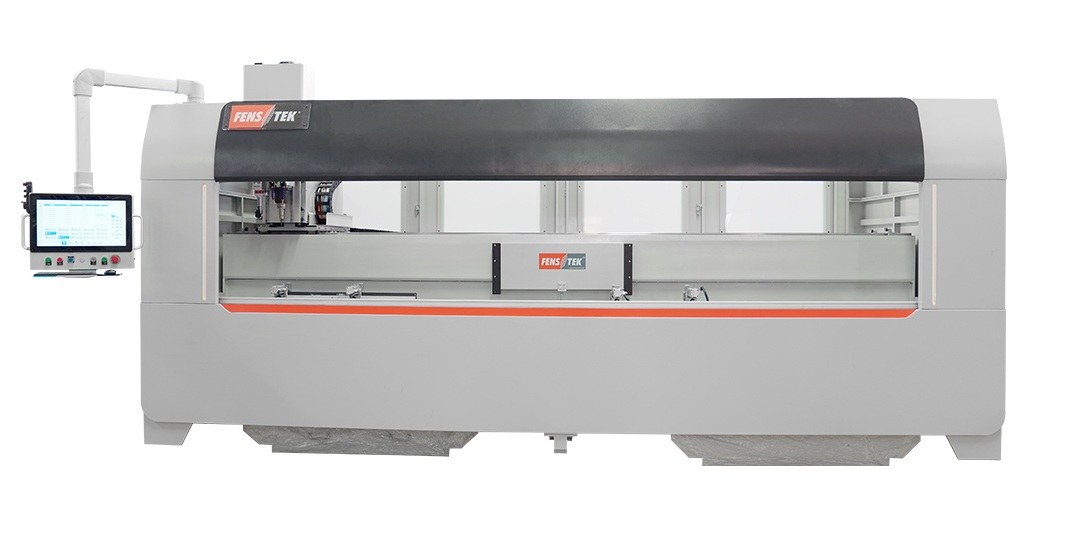

An advanced CNC laser and machining centre with double working zones, 2 servo-controlled turning tables, 4 servo-controlled clamps and a standard length of 4 metres. Suitable for aluminium and steel profile processing, the machine performs milling, drilling, tapping, grooving and other multifunctional machining operations with high precision in a single setup.

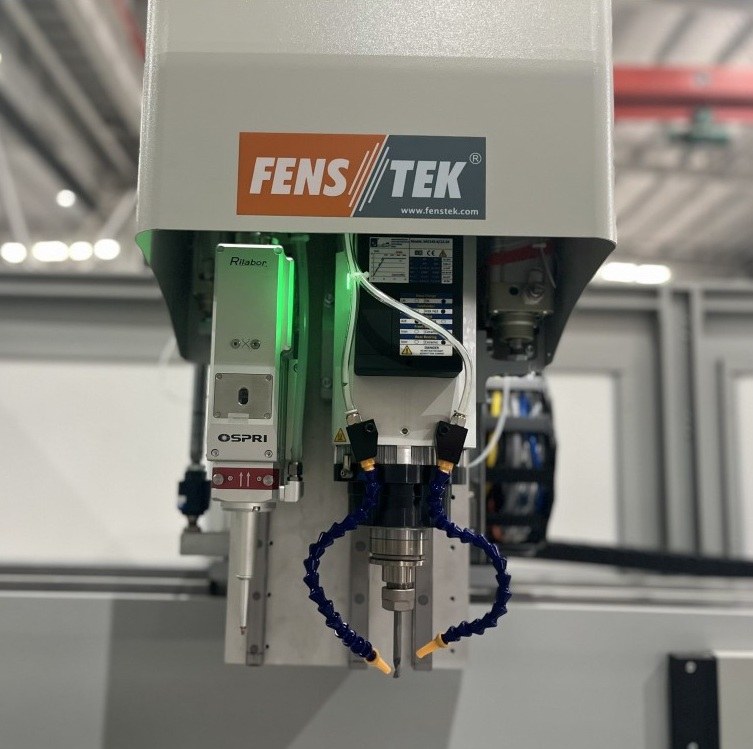

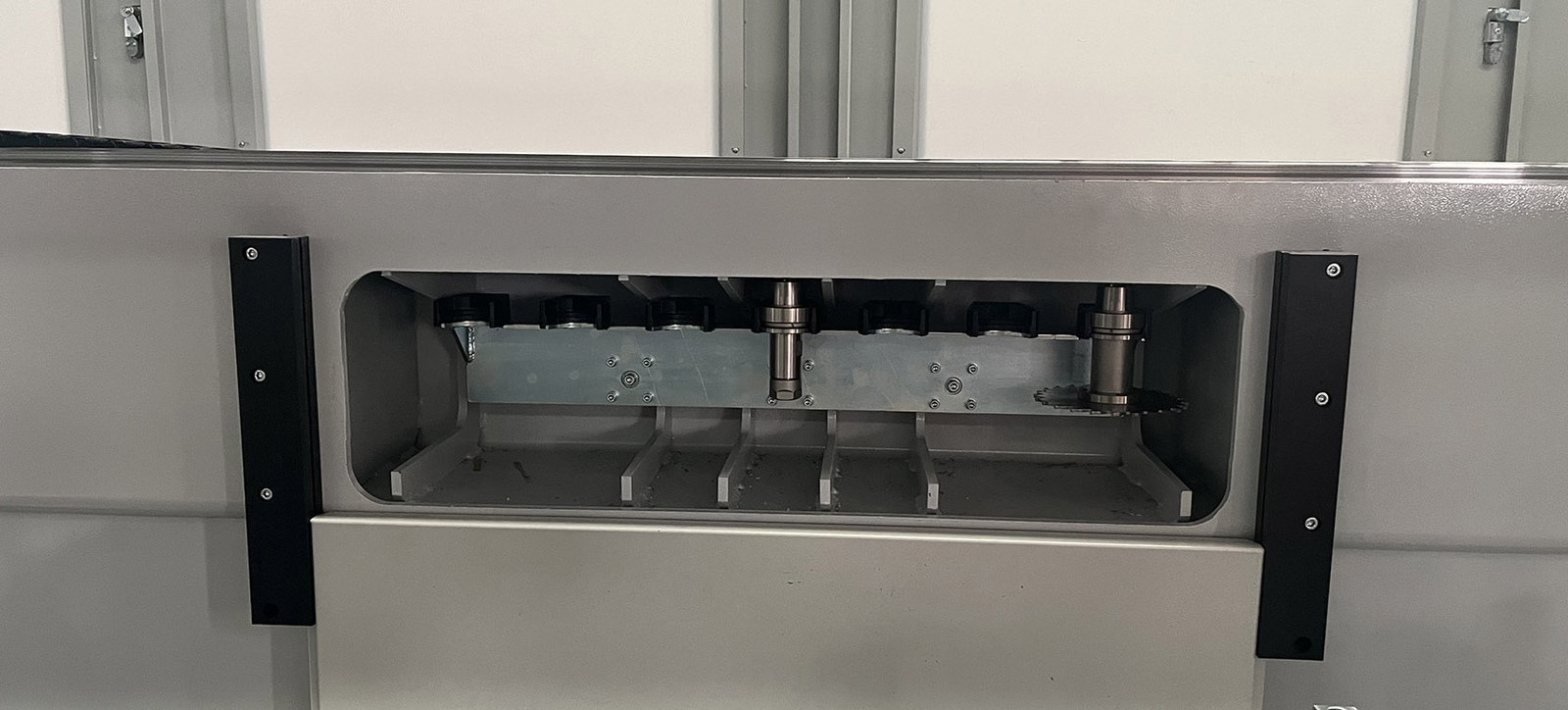

- 9.5 kW electro-spindle with 7-position tool change

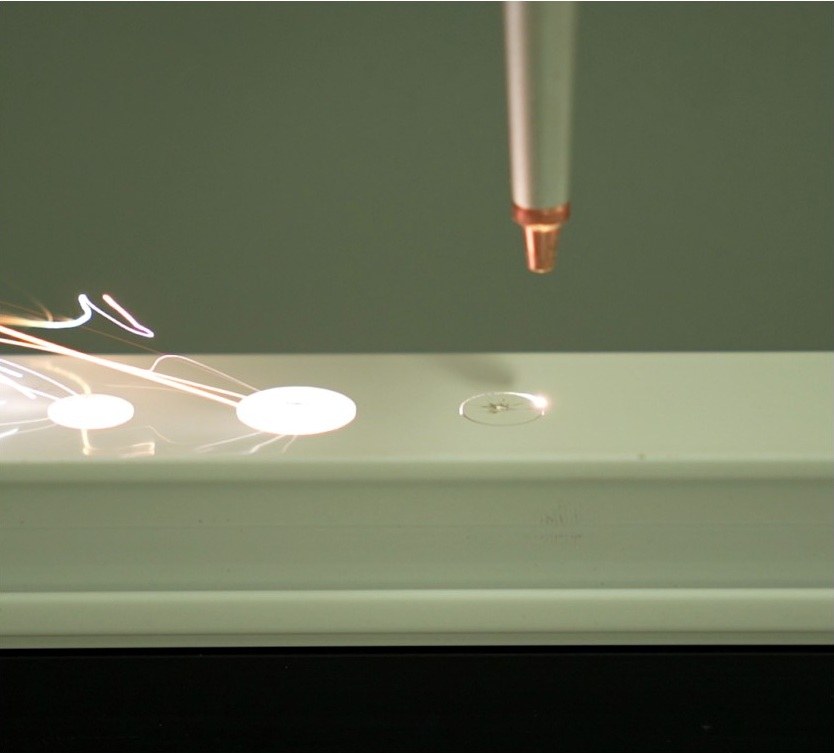

- 1.5 kW high-efficiency laser generator

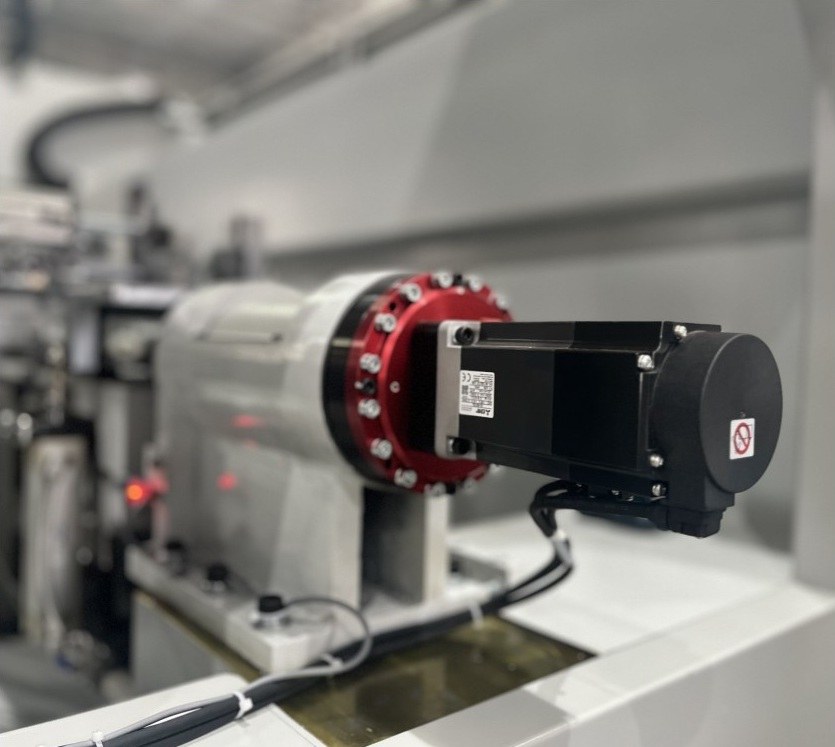

- 2 servo-driven rotating tables

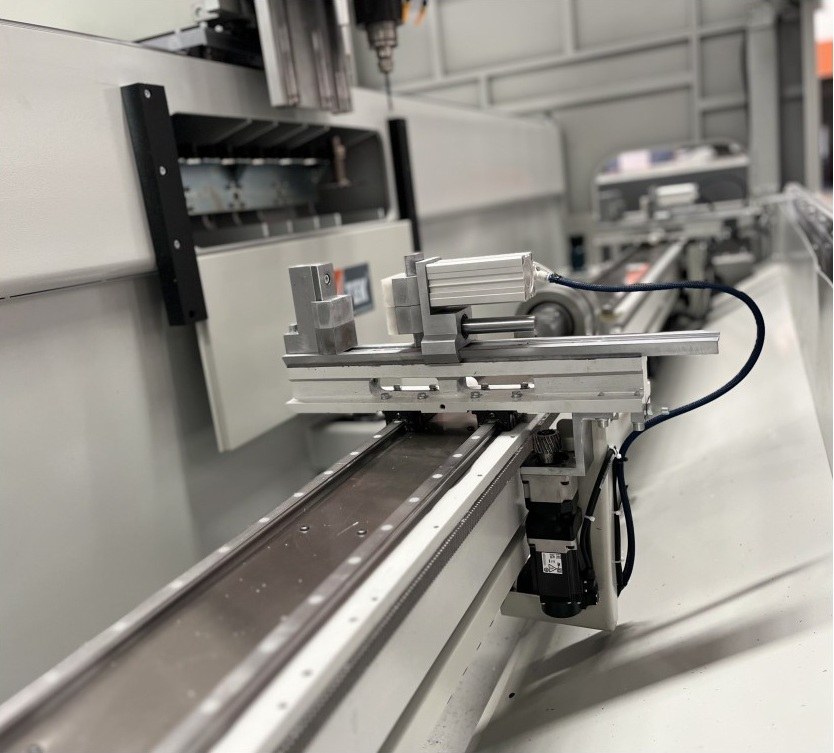

- 4 servo-driven clamps
- Double working zones, 4 m standard length

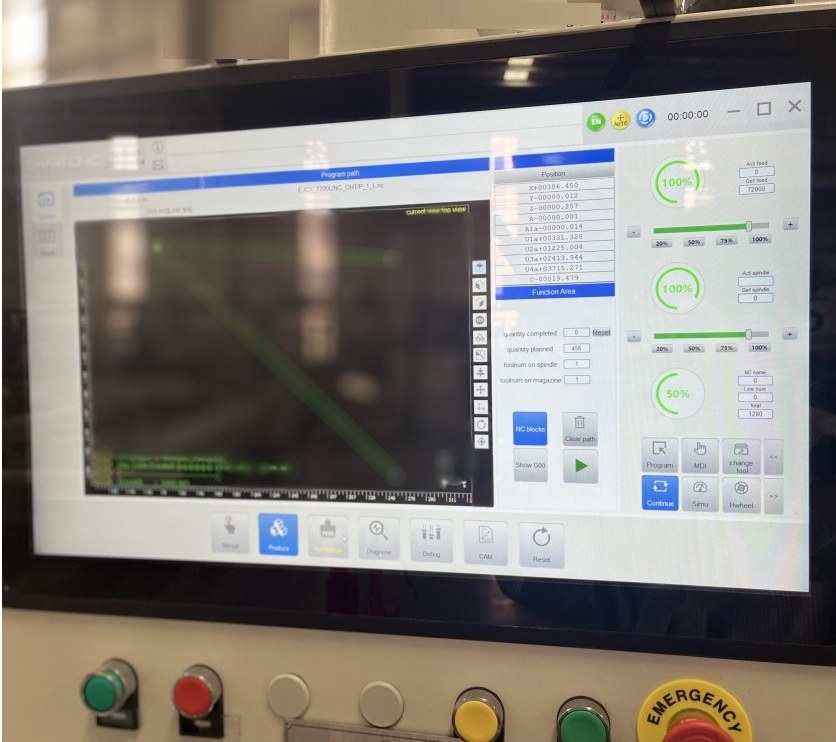

- Windows operating system
- Auto lift-up safety cover assures operator safety
Interested in the CNC Machining Centre with Laser range?
Tell us which model you’re interested in or describe your production requirements — we’ll come back to you with tailored advice and pricing for the Australian market.
- T200L
